6.5 Marine Compass

In China compasses have been in use since the Han dynasty (2nd century BCE to 2nd centuryCE) when they were referred to as “south‐pointers”. However at first these magnets wereonly used for geomancy much like in the art of Feng Shui.Eventually, during the Sung dynasty (1000 CE) many trading ships were then able to sail asfar as Saudi Arabia using compasses for marine navigation. Between 1405 and 1433,Emperor Chu Ti's Treasure Fleet of the Dragon Throne ruled the entire South Pacific and theIndian Ocean, a territory that ranges from Korea and Japan to the Eastern coast of Africa.At this time Western mariners were still rather ignorant of the navigational use of themagnet. Petrus Perigrinus van Maricourt wrote a first treatise on the magnet itself: “DeMagnete” (1269). And though its nautical use was already mentioned in 1187 by the Englishmonk Alexander Neckham, the use onboard only came about around the 13th and 14thcentury in the Mediterranean Sea.Much later, in 1545, Pedro de Medina (Sevilla 1493‐1567) wrote the Spanish standard work“Arte de Navegar” on marine compass navigation. This masterpiece was first translated inDutch (1580) and was ‐O Irony‐ used by Jacob van Heemskerk when the Dutch destroyedthe Spanish fleet near Gibraltar in 1607. The drawback was of course Van Heemskerk's owndeath during this victory.

Compass Rose

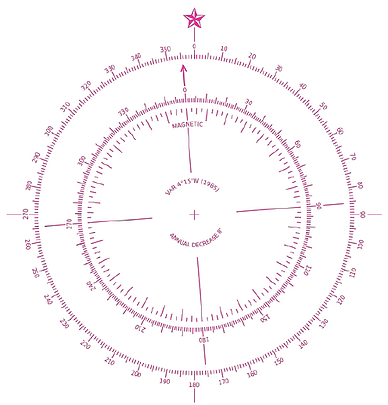

Photo 6.5.1 shows the compass rose, a common presence on every nautical chart. The compass rose has two concentric rings, where the outer ring represents headings relative to true north and the inner ring represents headings relative to magnetic north. On the outer ring, 000° points to true, or geographic, north and always points towards the top of the chart. On this ring, 090° is true east, 180° is true south, and 270° is true west. It has long been known to geologists and geographers that the magnetic north pole is not in the same place as the geographic north pole. The difference between true and magnetic north -- called the variation -- will depend upon where you are located on the globe. The problem is exacerbated by the fact that the magnetic north pole is actually constantly moving, a phenomenon is known as the wandering magnetic pole.


Thus, the variation between magnetic and true north at any given spot is changing every year. The center of the compass rose in the figure indicates that when this rose was drawn (1985), the variation between true and magnetic north was 4°15'W. Look closely to see that, indeed, magnetic north (i.e., 0° on the inner ring) corresponds to approximately 356° on the outer ring.

Στιγμιότυπο οθόνης 2021-04-14 111955.png

Magnetic Variation
In the fin‐de‐siècle of the sixteenth century mariners believed that the magnetic north pole coincided with the geographic north pole. Any suggestion otherwise had been denied by Pedro de Medina. Magnetic observations made by explorers in subsequent decades showed however that these suggestions were true. But it took until the early nineteenth century, to pinpoint the magnetic north pole somewhere in Arctic Canada (78° N , 104° W). From then on the angle between the true North and the Magnetic North could be precisely corrected for. This correction angle is called magnetic variation or declination. It is believed that the Earth's magnetic field is produced by electrical currents that originate in the hot, liquid, outer core of the rotating Earth. The flow of electric currents in this core is continually changing, so the magnetic field produced by those currents also changes. This means that at the surface of the Earth, both the strength and direction of the magnetic field will vary over the years. This gradual change is called the secular variation of the magnetic field. Therefore, variation changes not only with the location of a vessel on the earth but also varies in time.


Correcting for variation
The correction for magnetic variation is shown for your location on your current navigation chart's compass rose. Take for example a variation of 2° 50' E in 1998. In 2000, this variation is estimated to be 2° 54', almost 3° East. This means that if we sail 90° on the chart (your true course), the compass would read 87°. To convert your true course into a compass course we need first assign a “‐” to a Western and a “+” to a Eastern variation.


From the following equation you will see that this makes 11 sense : 87° cc + 3° var = 90° tc , in which “cc” and “tc” stand for “compass course” and “true course”, respectively. We can use the same equation to convert a compass course into a true course. If we steered a compass course of 225° for a while, we have to plot this as a true course of 228° in the chart.


Magnetic deviation

Magnetic deviation is the second correctable error. The deviation error is caused by magnetic forces within your particular boat. Pieces of metal, such as an engine or an anchor, can cause magnetic forces. And also stereo and other electric equipment or wiring, if too close to the compass, introduce large errors in compass heading. Furthermore, the deviation changes with the ship's heading, resulting in a deviation table as shown below. The vertical axis states the correction in degrees West or East, where East is positive. The horizontal axis states the ship's heading in degrees divided by ten. Thus, when you sail a compass course of 220°, the deviation is 4° W.


When a compass is newly installed it often shows larger deviations than this and needs compensation by carefully placing small magnets around the compass. It is the remaining error that is shown in your deviation table. You can check your table every now and then by placing your boat in the line of a pair of leading lights and turning her 360 degrees.


Correcting for both deviation and variation
Converting a compass course into a true course, we can still use our equation but we need to add the correction for deviation:
cc + var + dev = tc

Example 1: The compass course is 330°, the deviation is +3° (table) and the variation is +3° (chart); 330° cc + 3° var + 3° dev = ?° tc

  • giving a true course of 336° which we can plot in our chart

Example 2: The compass course is 220°, the deviation is ‐4° (table) and the variation is still +3° (chart).

220° cc + 3° var + ‐4° dev = ?° tc

  • giving a true course of 219° which we can plot in our chart.

Converting a true course into a compass course is a little less straight forward, but it is still done with the same equation.


Magnetic course
The magnetic course (mc) is the heading after magnetic variation has been considered, but without compensation for magnetic deviation. This means that we are dealing with the rewritten equation from above: tc ‐ var = cc + dev = mc.


Magnetic courses are used for two reasons. Firstly, the magnetic course is used to convert a true course into a compass course like we saw in the last paragraph. Secondly, on boats with more than one compass more deviation table are in use; hence only a magnetic or true course is plotted in the chart.


To summarise, we have three types of “north” (true, magnetic and compass north) like we have three types of courses (tc, mc and cc). All these are related by deviation and variation.
